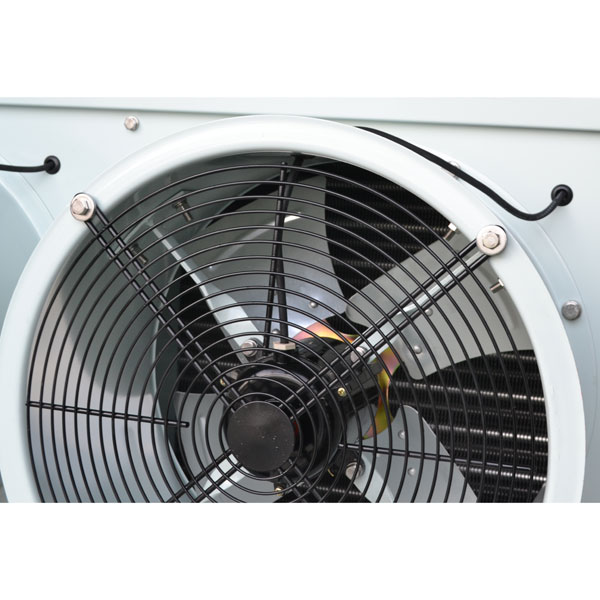

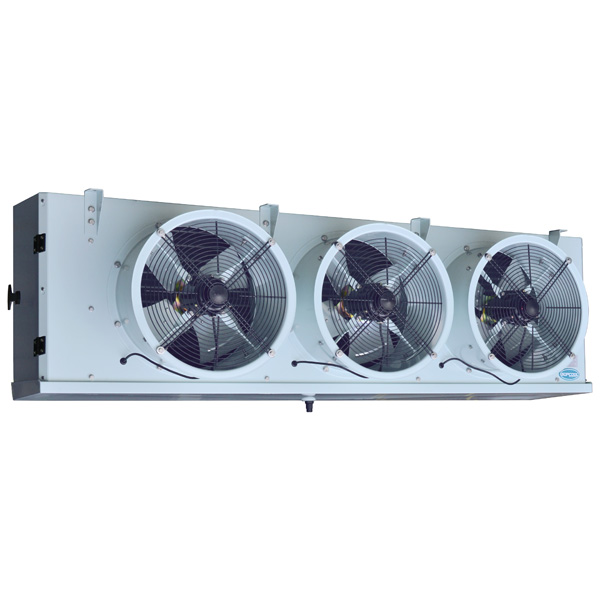

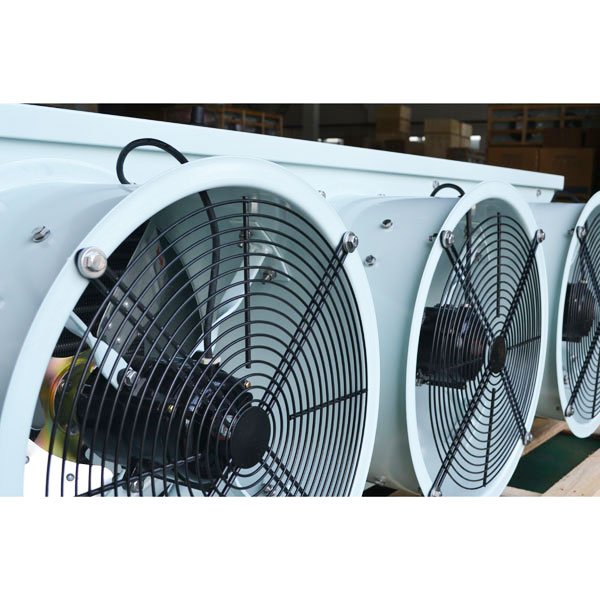

D&N Series Air Coolers

D : Evaporator with Checking Door D Series :
1. Supcool classical design for evaporator with checking door;
2. Water defrosting is optional; Long distance air throw is optional.
N Series :
1. N series appearance is based on D series improvement;
2. The front panel improved with reinforced design to drop the noise during the running of our evaporator.

L : Application Temperature L ： -5℃ ~ +5℃ D : -15℃ ~ -20℃ J : Below-25℃

(S/L) : Vacancy: electrical defrosting&standard air throw S : water defrosting;
C : Long distance air throw (Basically increase 1-3m on same model)

29 : Cooling Capacity KW

45 : Dia.(cm) of Fan Motor

3 : Quantity of Fan Motors

A : A:380V 3 Phase 50Hz B:220V 1 Phase 50Hz

♦ Power Painting Steel Body;

♦ Defrosting with stainless steel electric heater;

♦ Double layer drain plate keep the condensate water from frozen.
