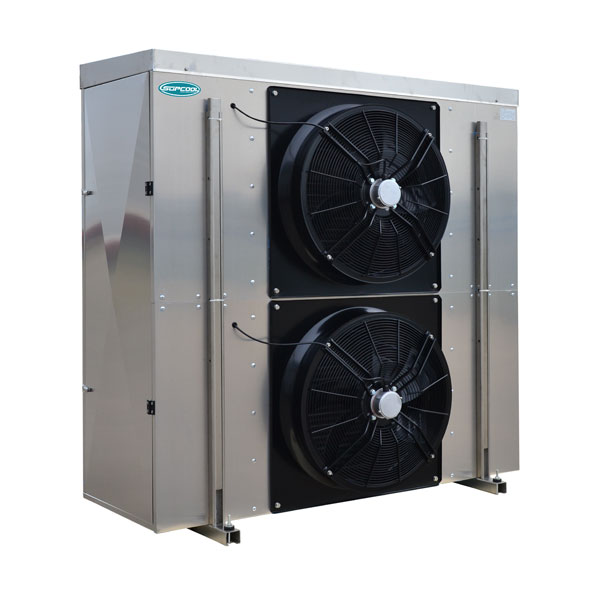

Vertical Blast Freezing Air Cooler

V : Vertical Type Evaporator

L : M: -15 ~ -20℃ / L: Below -25℃

36.3 : Cooling Capacity (KW)

506 : Fan Motor Dia. 500mm x 6pcs

A : 380V/50Hz/3phase

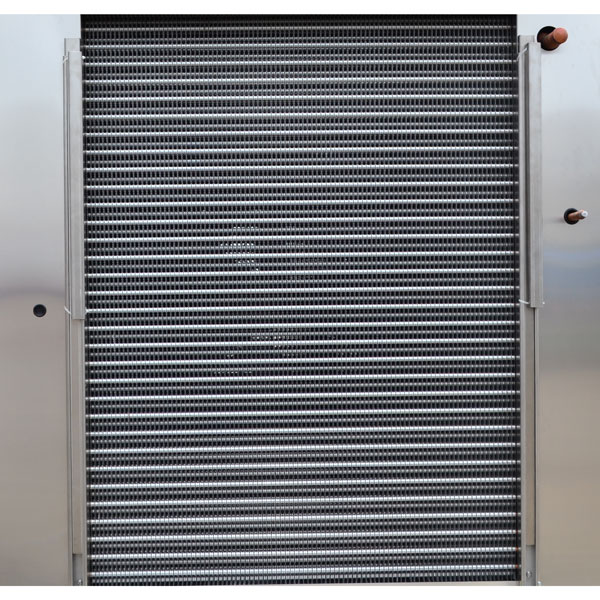

♦ Very big diameter copper tube φ16mm, Max fin space up to 10mm;

♦ Benefited from the huge heat-transfer surface we have experiment shows that weight loss during the freezing of food reduced tremendously which proves our new design limit the dehumidification perfectly;

♦ Due to the low frosting velocity, customers could save a lot from the power consumption;

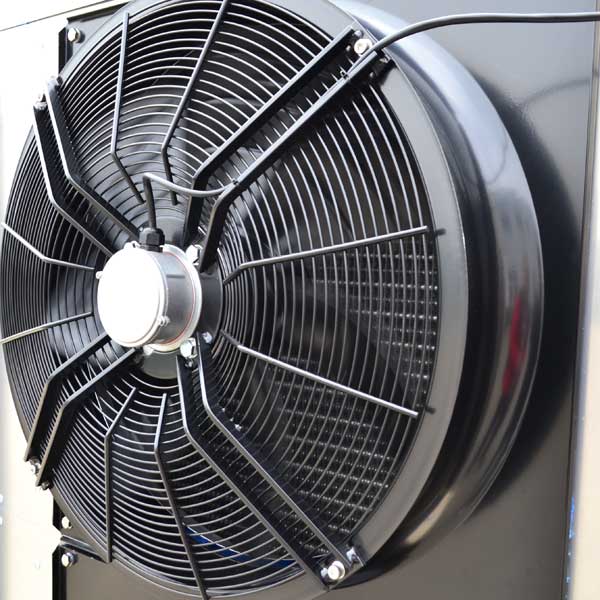

♦ Top quality axial fan motor could make sure that you have a low noise, stable and reliable evaporator;

♦ Galvanized steel with powder painting body is very good against corrosion, of course that stainless steel is optional;

♦ With vertical structure, installation could be very easy.
